LightMake

The World’s First
Independent 4-Head 3D Printer Powered by Linear Motors

LightMake

The World’s First
Independent 4-Head 3D Printer Powered by Linear Motors

Why L4 Stands Out

4

4

Independent Print Heads Independent
PrintHeads

Linear Motors, Beltless Drive

Linear Motors, Beltless Drive Linear Motors,
Beltless Drive

1-Second

1-Second

Toolhead Change

Zero

Zero

Purge Waste

Anti-vibration Design

354×370×386mm³

354×370×386mm³

Large Build Volume

±1μm

±1μm

Closed-Loop Motion Precision

50,000H+

50,000H+

Stable Operation

The Independent 4-Head Revolution

The Independent
4-Head Revolution

Meet LightMake L4, An Unprecedented Productivity Beast.

Meet LightMake L4,
An Unprecedented Productivity Beast.

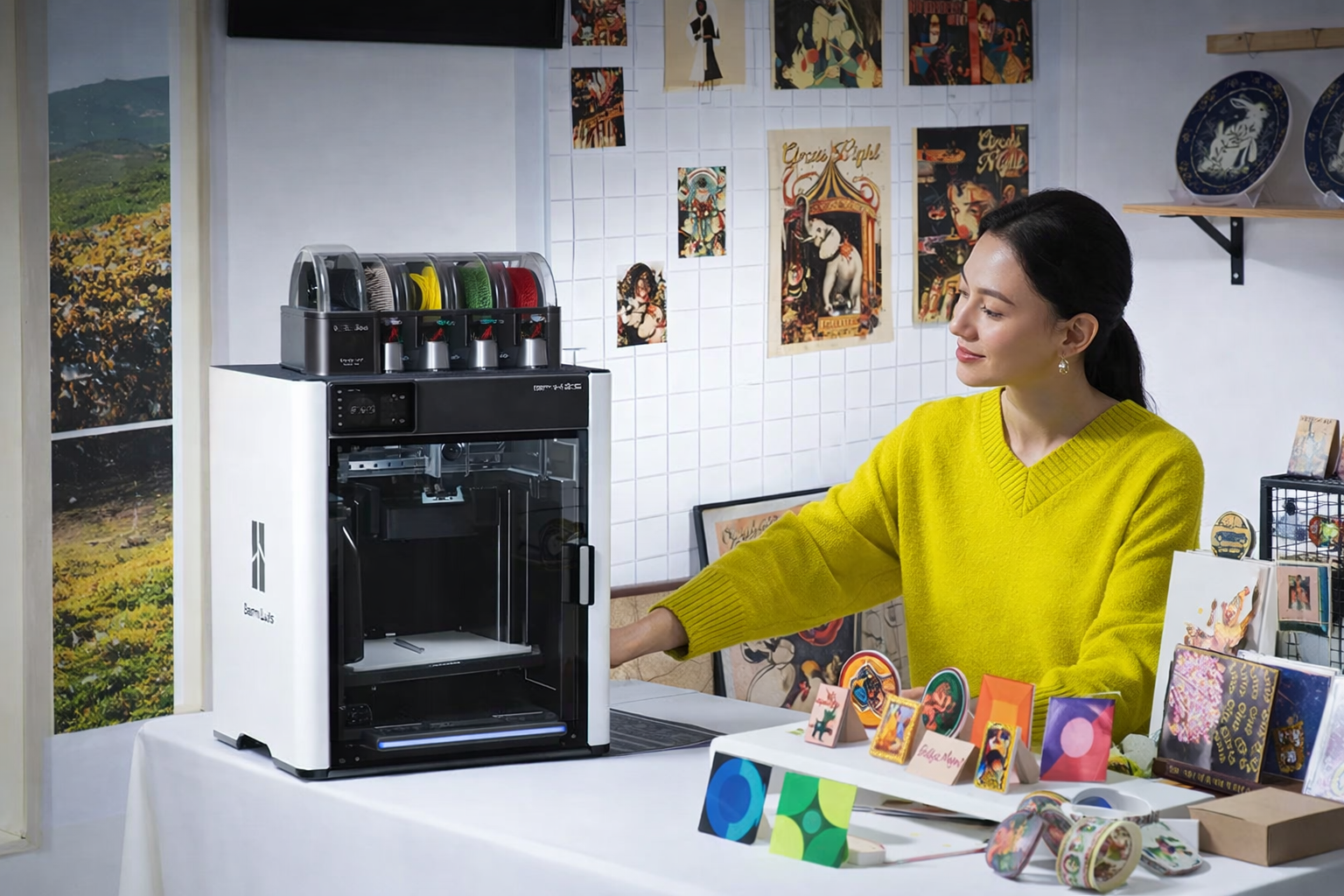

Toolhead Change in Just 1-Second

Toolhead Change in

Just 1-Second

Even the fastest 3D printers still need more than 5 seconds for every single color change. With 4 independent heads always loaded and ready, the L4 virtually eliminates the massive purge waste. Through intelligent real-time coordination and pre-heating of the toolheads, the L4 reduces tool changing time to just 1 second, saving over 79% time on multi-color printing.

4Independent Toolheads
*1sTool Change
*Save over79%Time

*1s Tool Change: Refers to the mechanical switch time from when one toolhead stops printing to when the next takes over.
*Save over 79% Time: Calculated based on internal testing using a 4-color fox model. Actual results will vary depending on model geometry and color complexity.

1 Machine,
4X Output

Bypass the slow, sequential batch printing of traditional machines. The L4's independent 4 heads operate simultaneously to instantly quadruple your output. Produce four complete models in a single printing.

Kill the Purge

Stop bleeding profits on purge waste. Achieve zero purge waste. With four independent heads serving each color through dedicated nozzles, the L4 swapped massive, wasteful purge for a minimal prime tower. Every single gram you load builds your masterpiece.

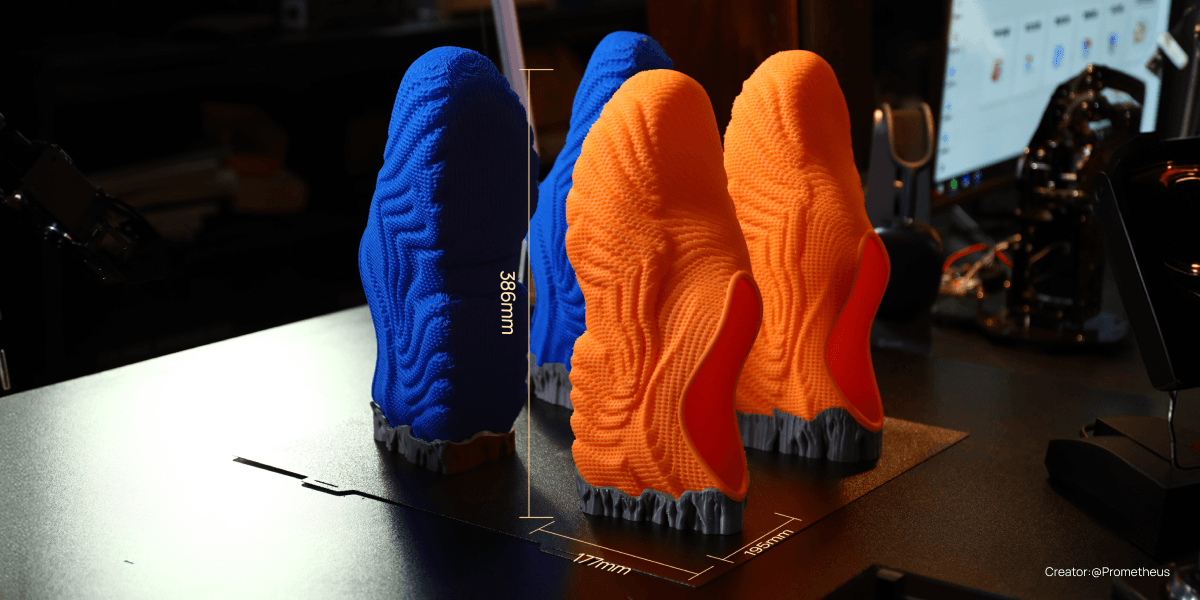

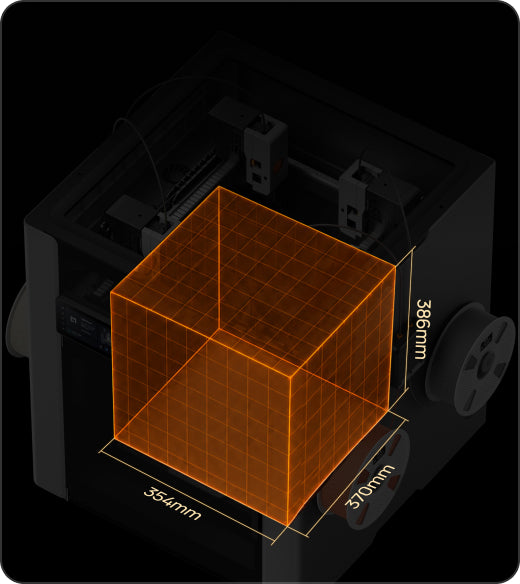

Uncompromised Massive Volume.

Print it whole. The L4 massive chamber fits a standard basketball with room to spare. It is your ultimate canvas to bring the wildest designs to life with zero slicing and zero gluing.

Seamless Mega Prints. Print a massive moon lamp in one go. No glued seams to ruin the glow.

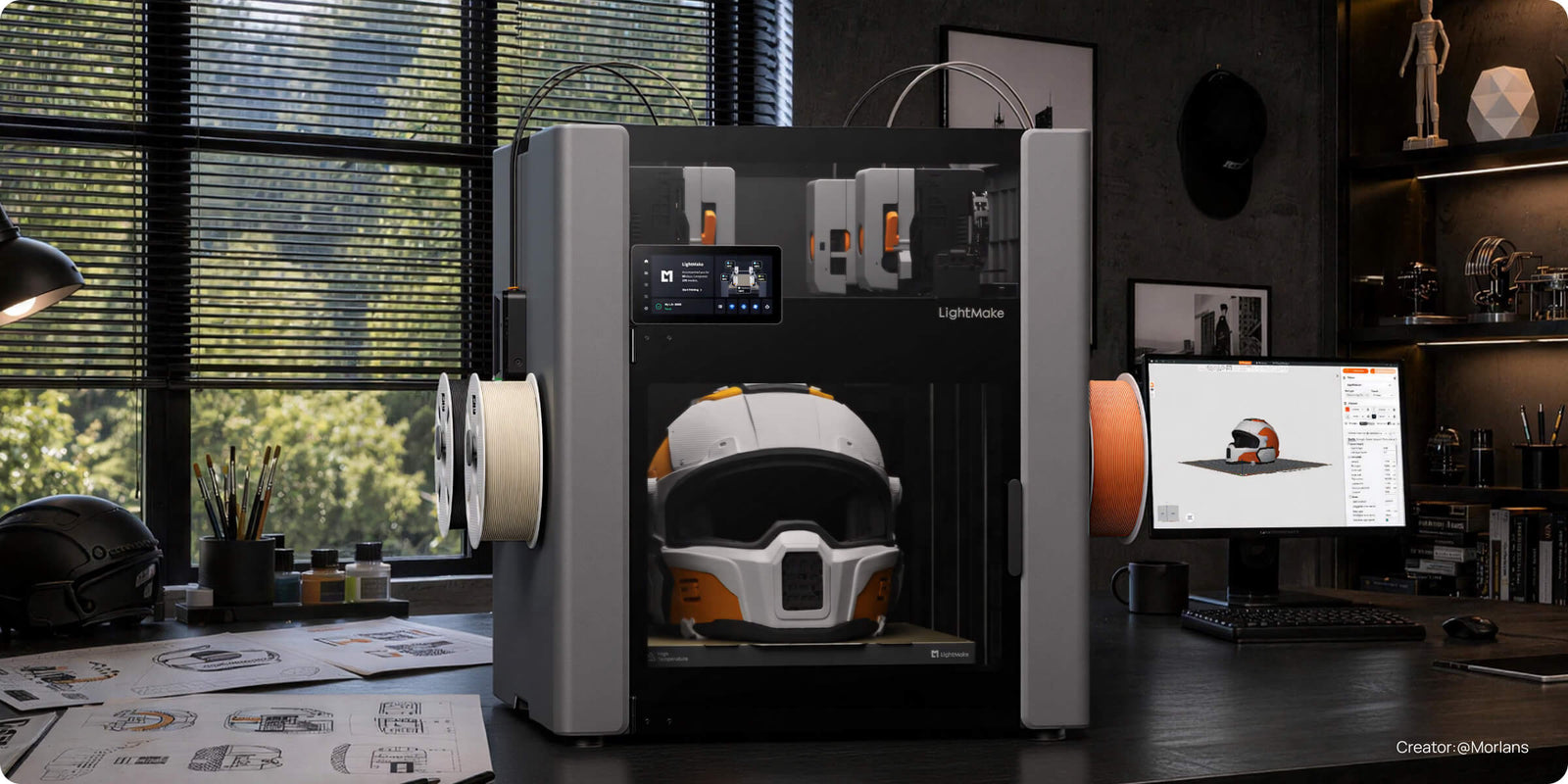

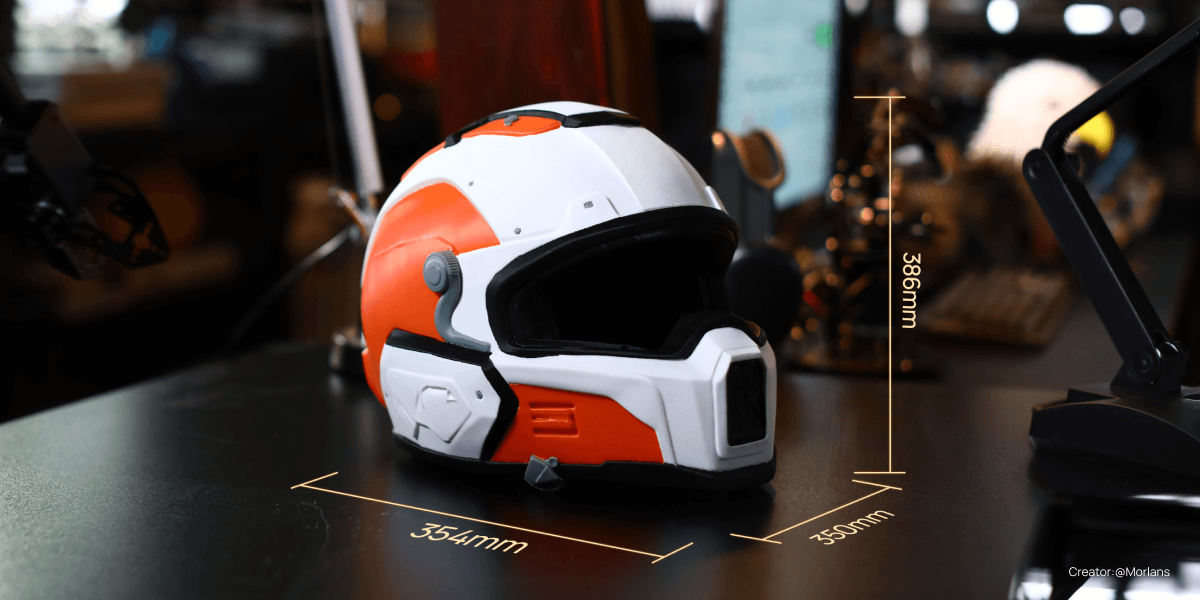

Full Size. Zero Waste. Craft a vibrant 1:1 cosplay helmet. 4 independent toolheads eliminate purge waste. Keep your filament in the model and out of the trash.

Multiply your output instantly. Perfect for mass-producing mechanical parts or retail products simultaneously.

Seamless Material Fusion

Seamless Material Fusion

Print up to four materials in one go to simplify your workflow. By seamlessly combining rigid, flexible, and specialized support filaments in a single continuous print, removing post-processing and manual assembly from your timeline. This unconstrained freedom expands your design possibilities.

Seamless Material FusionSeamless Material Fusion

Print Functional Designs

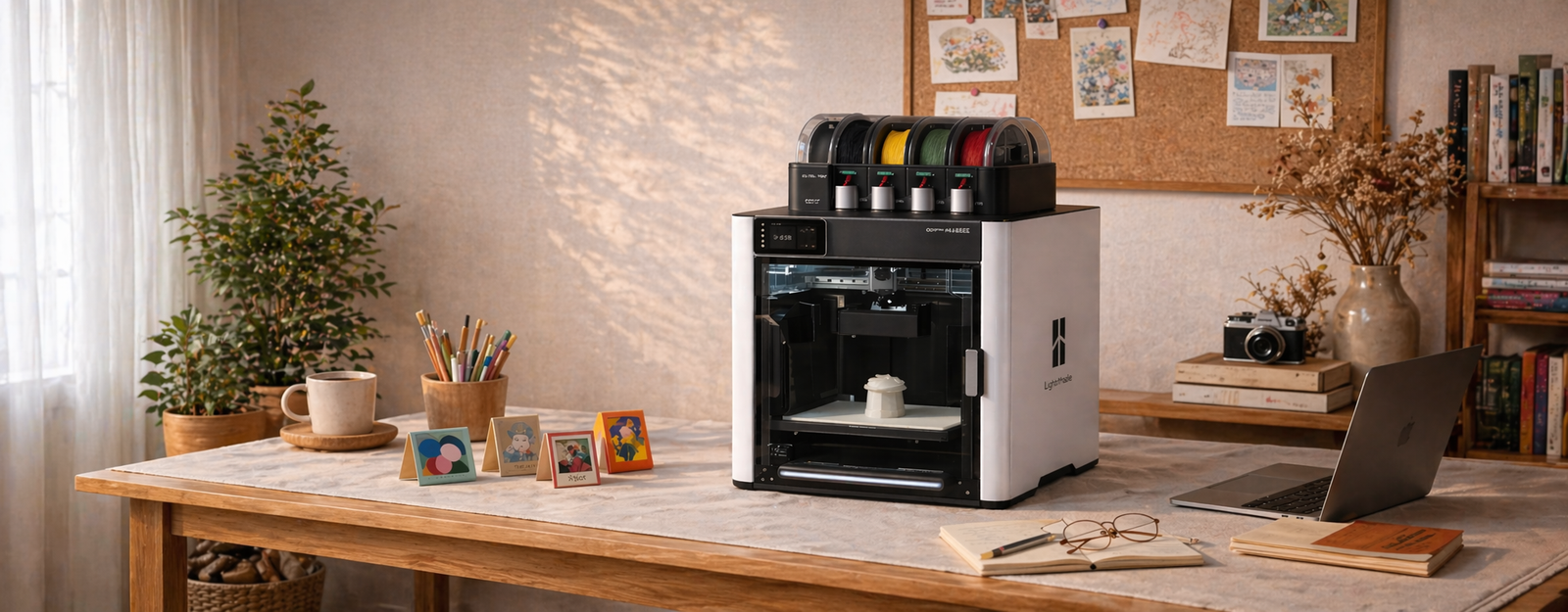

Linear Motors, Ending the Belt Era

Linear Motors,

Ending the Belt Era

Ditch the rubber belts and pulleys. Experience a revolutionary leap in
stability, precision, speed, and durability.

*500 mm/s
Max Print Speed
±1μm
Motion Precision
>50,000h
Motor Lifespan

Direct-Drive Kinetics

Direct-Drive Kinetics

Experience the raw power of direct-drive linear motors. With zero transmission loss, every ounce of energy translates into instant acceleration and ultra-crisp stops, virtually eliminating ringing and ghosting.

*500 mm/s
Max Print Speed
1000 mm/s
Travel Speed
*20 m/s²
Acceleration

*Note: The linear motor’s true physical limit is vastly higher. We deliberately tuned the max print speed to 500 mm/s and acceleration to 20 m/s² to ensure stable, high-quality output.

Closed-Loop
Precision

Linear motors enable true closed-loop control. The system actively monitors and adjusts the motor's position in real-time, delivering ±1μm motion accuracy and eliminating layer shifts. Whether you are printing intricate mechanical threads or large multi-part assemblies, experience the satisfaction of a seamless, perfect fit right off the build plate.

±1μm
Motion Precision
≈70μm
Human Hair

10X Lifespan,
Zero Maintenance

Non-contact magnetic propulsion eliminates mechanical friction and wear, delivering a 10X longer lifespan compared to traditional belt-driven setups. This architectural leap ensures over 50,000 hours of degradation-free performance without the need for constant tensioning or frequent replacements.

>50,000h
Motor Lifespan
=14h
Daily Usage
≈10yrs
Years of Use

Engineered for Your Ambition

Whether you seek ultimate ROI, limitless creativity, or assembly-ready prototypes, the L4 is engineered for you.

Unleash your full creative potential. Stop letting massive purge towers, agonizingly slow color swaps, and ugly surface ringing ruin your masterpiece. Let your imagination flow without limits.

Full-scale prototyping with zero post-processing. Print large, multi-color models in a single continuous job. Skip the gluing and manual adjustments, and keep your workflow strictly focused on design.

Sharpen your competitive edge. Break through the limitations of slow output, frequent maintenance, and massive material waste. Shatter these traditional bottlenecks and achieve maximum ROI from a smart investment.

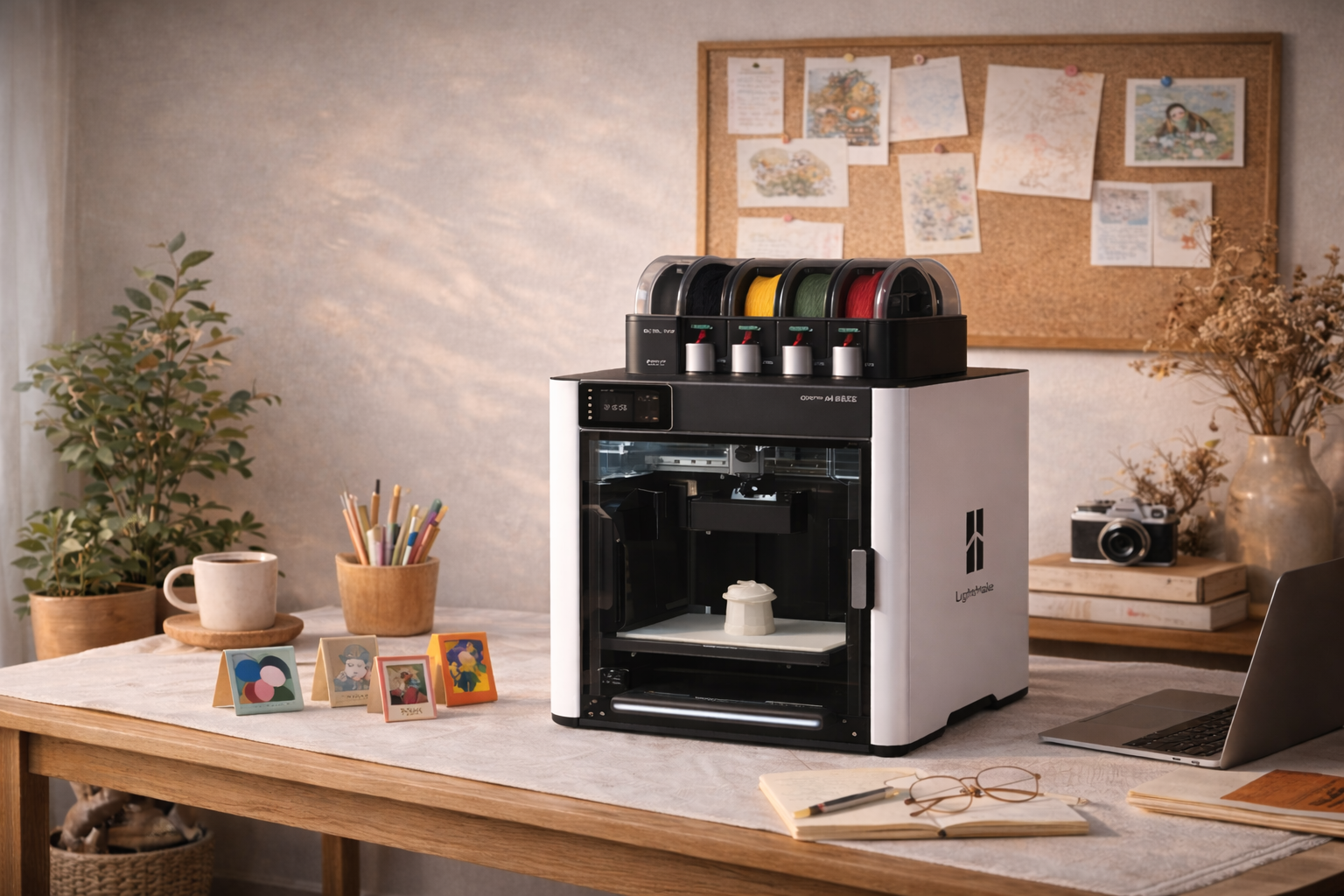

Unfailing Steady, Unmatched QualityUnfailing Steady, Unmatched Quality

Unfailing Steady, Unmatched Quality

Perfected from the Ground Up

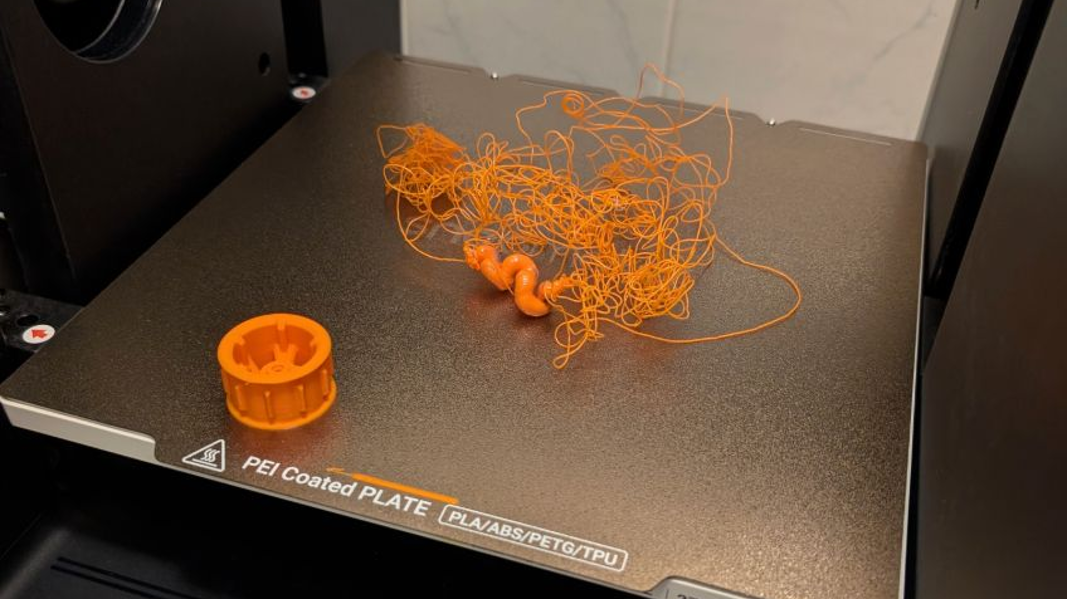

Maximize your first-layer success rate. A 5mm independent toolhead lifting mechanism pairs with micron-level compensation to drastically improve adhesion and virtually eliminate warping. Secure a uniform, consistently reliable first layer every time.

Traditional mechanical calibration relies on theoretical offsets, ignoring real-world machining tolerances and extrusion drift. L4 solves this by scanning the actual print. Using optical sensors to capture the precise X/Y coordinates of the deposited material, it achieves a 30μm absolute alignment for zero-gap multi-material transitions.

Precision Meets Purity

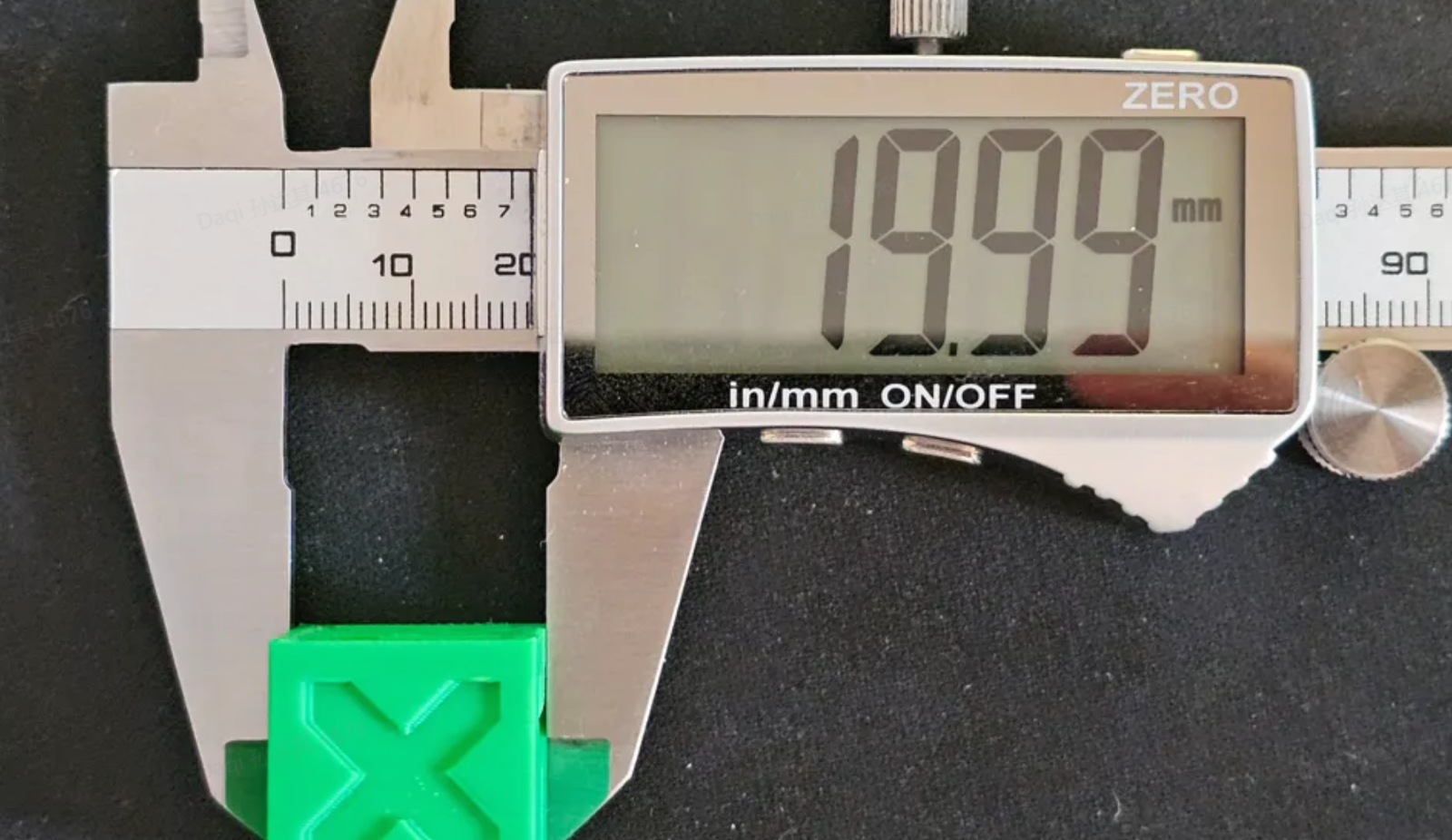

Harness ±1µm motion precision. The advanced linear motor maintains tight tolerances even at high speeds, ensuring that all printed components interlock seamlessly. Deliver complex, ready-to-use assemblies with near-zero manual sanding.

Eliminate color bleeding entirely. The Independent 4-Head system utilizes absolute physical isolation, ensuring overlapping colors and materials never interfere with one another. Deliver incredibly crisp transitions that faithfully capture your design.

"Coin-Standing" Stability

AI-Driven Smart Control, Unleash Your Productivity

L4 Handles the Complexity,
You Get the Ease

AI Smart MonitoringAI Smart Monitoring

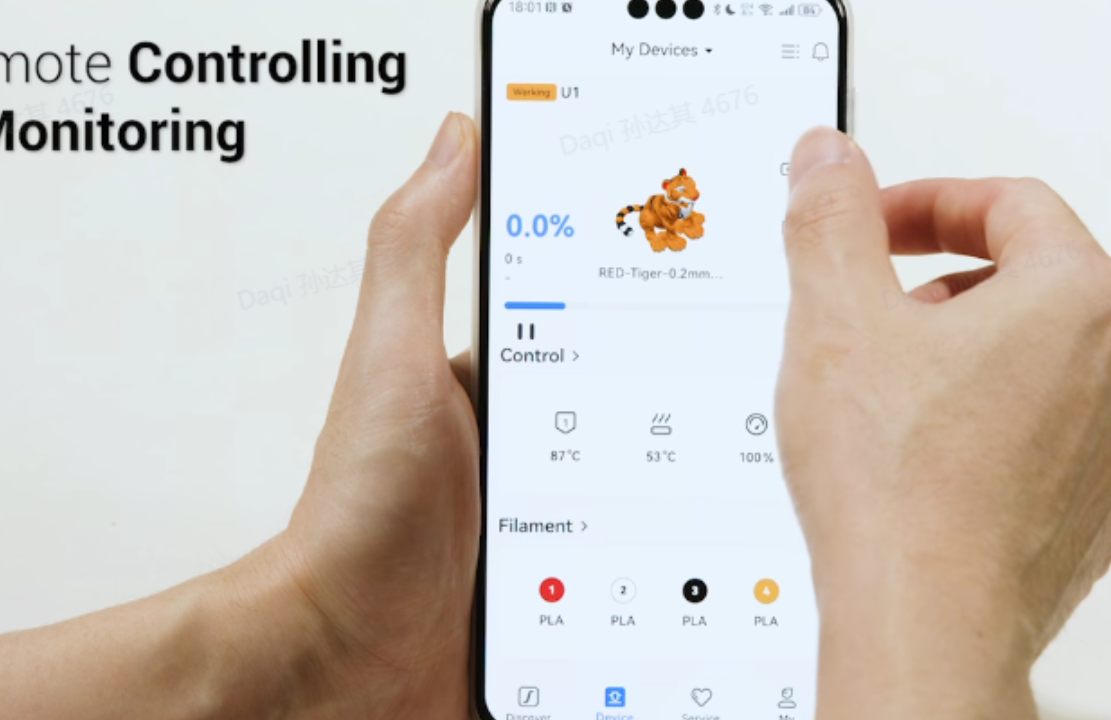

AI Smart Monitoring

Dual HD cameras with AI detection. Instantly halts failures. Total unattended security.

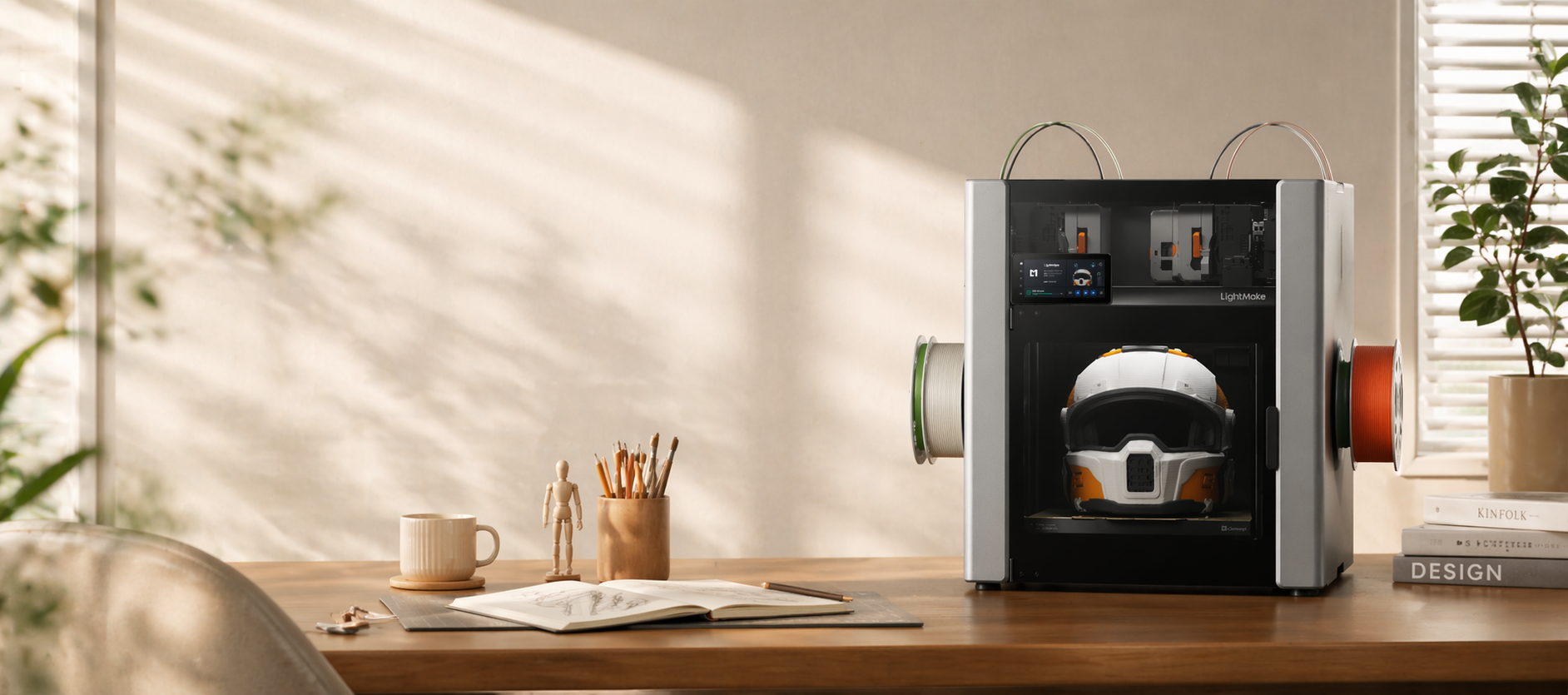

One-Tap Fleet DeploymentOne-Tap Fleet Deployment

One-Tap Fleet Deployment

Connect one L4 to automatically wake and network adjacent units. Eliminate repetitive setups and scale your production instantly.

*Active pairing range is limited to 8 meters.

RFID Smart Material SyncRFID Smart Material Sync

RFID Smart Material Sync

Automatically read official filament data to adapt print parameters on the fly for a true plug-and-play experience.

6.5" Intuitive Control6.5" Intuitive Control

6.5" Intuitive Control

Master your entire workflow instantly through a massive, full-color interface.

One Architecture. Two Possibilities.

Your workflow, your choice. Choose the L4 for seamless multi-color mastery, or the LightMake L1 if your work demands pure, expansive scale. Both models share the same elite core, engineered to deliver uncompromising performance for your specific projects.

LightMake L4

LightMake L4

LightMake L1

LightMake L1

Drive System

Linear Motor Direct Drive*XY Axis
Linear Motor Direct Drive*XY Axis

Toolheads

4
1

Linear Motor Sets

8
3

Max Print Colors

Up to 16 Colors4 Colors Built In · Up to 16 with AMS
Up to 4 Colors with AMS

Maximum Printing Size - Single Color

354*370*386mm³
395*395*386mm³

Maximum Printing Size - Multi-Color

354*350*386mm³
395*395*386mm³With AMS units

Maximum Tool Head Temperature

320℃
320℃

Maximum Heat Bed Temperature

110℃
110℃

Maximum Travel Speed

1000mm/s
1000mm/s

Maximum Print Speed

500mm/s
500mm/s

Maximum Print Acceleration

20m/s²
20m/s²

Screen

6.5-inch color touchscreen
6.5-inch color touchscreen

Nozzle

Standard: 0.4mm;Optional: 0.2/0.6/0.8mm
Standard: 0.4mm;Optional: 0.2/0.6/0.8mm

Storage

4GB EMC, expandable with external USB drive
4GB EMC, expandable with external USB drive

Auxiliary Model Cooling

Supported
Supported

Camera

x2; 1560*720; 30 fps
x1; 1560*720; 30 fps

Suitable Materials

PLA, ABS, PETG, TPU, ASA, PVA, PET, PLA - CF, PETG - CF
PLA, ABS, PETG, TPU, ASA, PVA, PET, PLA - CF, PETG - CF

Printable Materials

PA, PC
PA, PC

Filament Change System

Optional
Optional

OTA

Supported
Supported
